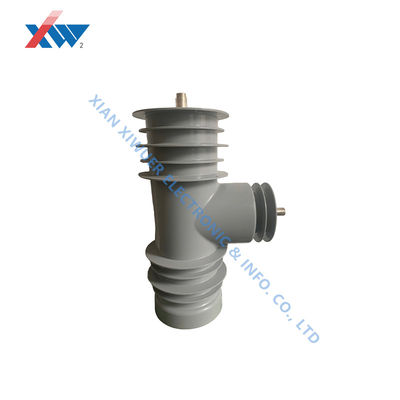

Capacitive Power Take Off Device for 10kV Intelligent High-Voltage Power Distribution Cabinet with 42kV Withstand Voltage and 75KV Lightning Impulse Withstand

  • Capacitive Power Take Off Device for 10kV Intelligent High-Voltage Power Distribution Cabinet with 42kV Withstand Voltage and 75KV Lightning Impulse Withstand
Lieu d'origine XIAN, CHINE
Nom de marque XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Numéro de modèle EVY3.2/4.2/5NF
Quantité de commande min 1 unité
Prix Négociable
Détails d'emballage Carton
Délai de livraison 5-8 jours
Conditions de paiement LC, T/T
Capacité d'approvisionnement 4 000 000 unités par année
Détails sur le produit
Tension nominale 48000(V) Application armoire à haute tension intelligente de distribution d'énergie 10kV
Tension de tenue aux chocs de foudre 1.2/50μs, crête 75KV Résistance d'isolation 1000V C.C, >1000MΩ
Tension de tenue 42kv*1min
Laisser un message
Description de produit
Capacitive Online Power Take Off Device Primary Secondary Fusion Deep Fusion Power Take-off Capacitor
EVY3.2/4.2/5NF Capacitive online power take-off device Primary and secondary fusion/deep fusion power take-off capacitor
Product Introduction
Take electricity 11W/20W
Rated power 50/60Hz
Withstand voltage 42kv*1min
Lightning impulse withstand voltage 1.2/50μs,75KV peak
Insulation resistance 1000V DC,>1000MΩ
Applications
  • 10kV intelligent high-voltage power distribution cabinet, switch cabinet, used to monitor the stability of the power grid
  • Column switch of 10KV power transmission and transformation line, zero sequence protection and measuring voltage sensor, used for accurate determination of ground fault direction
Capacitive Power Take Off Device for 10kV Intelligent High-Voltage Power Distribution Cabinet with 42kV Withstand Voltage and 75KV Lightning Impulse Withstand 0
Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (USD 15.85 million), owning total assets of CNY 315 million (USD 49.22 million). Established in 1976, the company employs approximately 460 staff with annual sales income of CNY 280 million (USD 43.75 million).

The company operates four production and business bases covering 43,052 square meters with construction area exceeding 50,000 square meters. Technical expertise includes 8 master's degree holders, over 80 senior engineers, 12 municipal government-recognized experts, and 1 State Council special allowance expert.

Main Products
• Smart Embedded Epoxy Pole
• Integrated Instrument Transformer
• Capacitive Voltage Divider
• High Voltage Capacitor Rod
• High Voltage Film Capacitor
• High Voltage Resistor
• Primary and Secondary Integrated Intelligent assembly and components with voltage measurement, current measurement, protection, temperature monitoring, and power supply functions
• Medium-High Voltage components/parts/assembly
• Surge Protective Device for Power Supply System
• Chips for lightning devices
• Zinc Oxide Varistor; Thermistor

Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and others.

The company maintains a provincial Technical R&D Center with nearly 20 years of development and manufacturing experience in key products including HV Ceramic Capacitor, SPD, Varistor, and Thermistor. Portfolio includes 32 patented technologies, 4 invention patents, and 4 national key new products.

Certified with ISO9001, ISO14001, and ISO45001 standards, the company was Northwest China's first to implement ISO 9001 and ERP management systems. Products hold UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH certifications with technical performance matching international leaders like Panasonic and Siemens.

Advanced production equipment includes imported machinery from Japan, USA, Germany, Korea, and Belgium featuring 26m sintering tunnel furnaces, 8 automatic assembly lines, large energy impulse current generators, and comprehensive testing equipment. The company operates two routine test laboratories with advanced lightning and environmental testing capabilities, serving as significant provincial-supported facilities.
